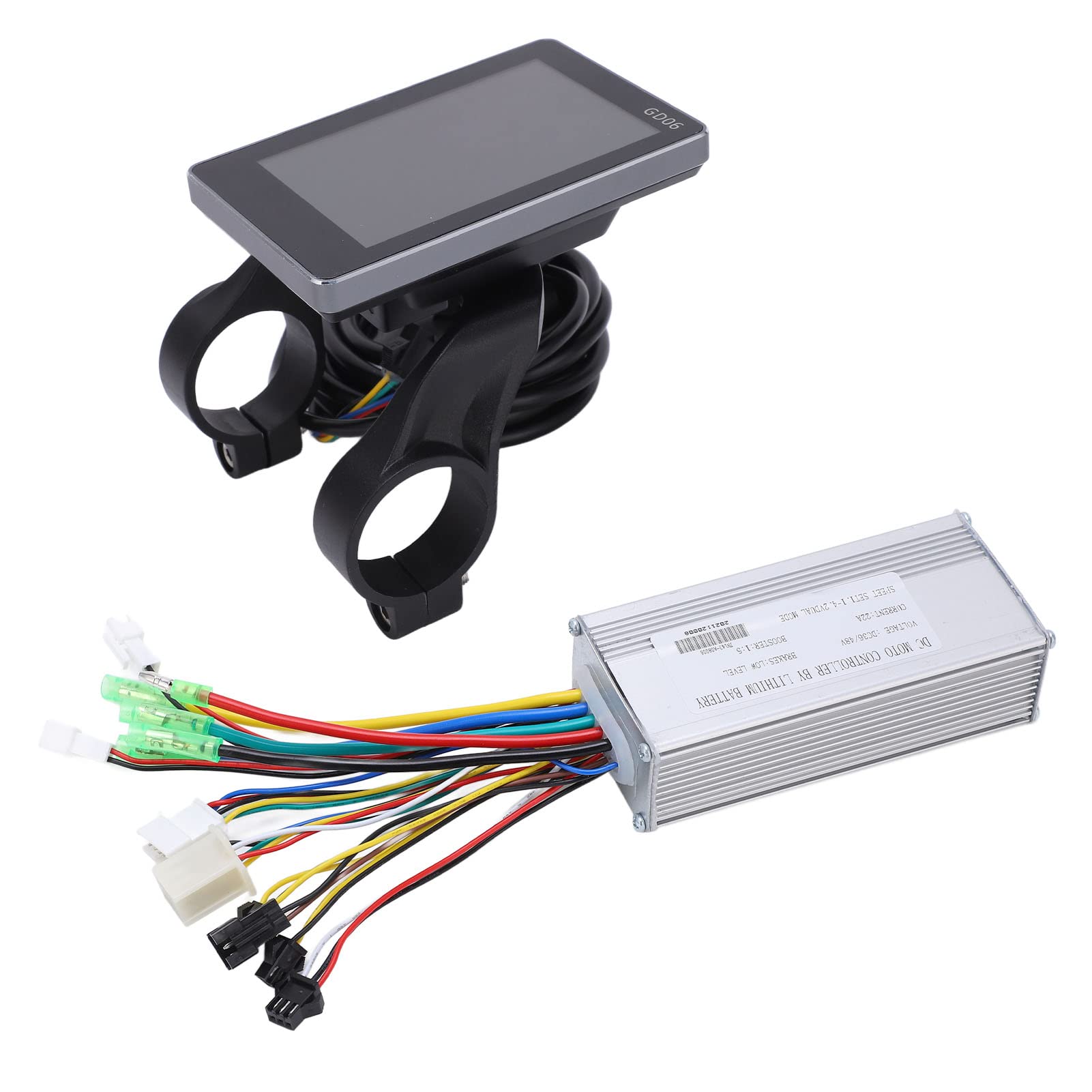

SoarUp 36V 48V 500W Electric Bike Controller Kit with LCD Display - Intelligent E-Bike Motor Controller with Excellent Heat Dissipation for Commuting & Mountain Biking

Product Description

Specification:Item Type: Electric Bicycle Controller GD06 Instrument KitColor: As Pictures ShownMaterial: Aluminum Alloy + ABS PlasticWeight: Approx.728g/25.6ozController Box Size: Approx. 111x53x33mm/4.4x2.1x1.3in, Meter Size: Approx. 96x62mm/3.8x2.4inController Rated Voltage: DC 36V/48VController Maximum Current: 22AController Speed Setting: 1-4.2VController Brake Input: Low LevelBooster: 1:5Applicable Motor Power: 500WController Wire Color Definition:1. Yellow, Green, Blue Single Big Head Line: Motor Phase Line2. Red-white-black-blue-green-yellow Double Row Six-wire Port: Motor Hall Wire3. Red and Black Single Big Head Line: Power Line4. Red, Blue, Black, Green and Yellow Single-row Five-wire Port: Instrument Line (5pin)5. Black and Yellow Lines (two): Power off Brake Handle Line6. Red and Black White Lines: Throttle Dial Line (3pin)7. Brown, Black and Yellow Wire: Power Sensor Wire (3pin)8. Black and Red Lines (two): Headlight LinesGD06 Function Description:1. Using Two Way Communication Protocol, the External Three Way Button is Easy to Operate; 2. Real Tme Speed Display; 3. Km/mile Display; 4. Intelligent Power Display; 5. Headlight Control; 6. 3 Level Adjustment of Backlight Brightness; 7. Five Gear Gear Control; 8. Mileage Display; 9. Fault Word Display; 10. Power Assisted Push Mode 6km/h, 11. Parameter Setting.Package List:1 x Controller1 x Instrument 2 x Instrument Gasket 1 x Thumb Throttle 1 x Speed Assist Sensor1 x Controller Wiring ManualNote:Note that the size of the motor is consistent with the controller kit.
