SKU:17763338

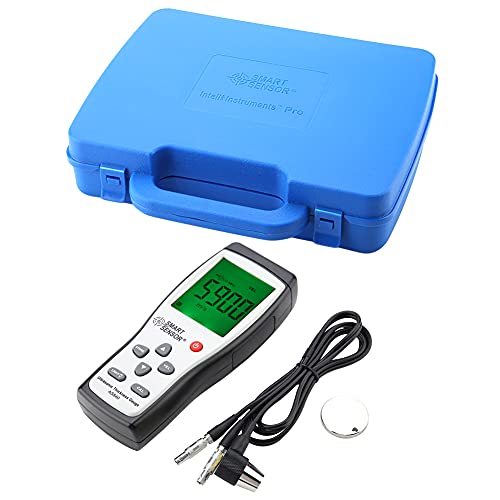

Scope of application:This unit is suitable for measuring materials that are good ultrasonic conductor such as metal, plastic, ceramic, glass etc.,as long as the measured part in two parallel surfaces for measurement of thickness. This unit is not suitable for cast irondue to its big crystalloid composition.Specification: Display: 4-digital LCD display Minimum display unit: 0.1 mm Measuring range: 1.2 to 225.0mm (steel) Working frequency: 5MHz Accuracy: (1%H+0.1)mm,H denotes the measured thickness. Minimum limit for tube measuring: 20*3mm (steel) Sound velocity range: 1000 to 9999 m/s Measuring sound velocity with a given thickness: measuring range: 1000 to 9999 m/s. When the given thickness > 20mm, the accuracy is +/-5%; when the given thickness < 20mm, the accuracy is +/-1mm/H*100%. Operation Condition temperature: 0°C~40°C Relative humidity: <90%RH Hardware/workpiece/material temperature: <60°C Operation current: Normal operation current: 50mA With Backlight turn on current: 120mA Stand-by current: 20uA Packing Contents： main unit-1PCS transducer-2 PCS(10mm 5MHz ,10mm 2.5MHz) coupling agent-1PCS(50ml) 4mmSample block-1PCS Power supply: 1.5V AAA * 3 PCS (not include due to air limit)Package list:1 x Thickness Gauge1 x Plastic box1 x 4mm calibration block1 x probe (10mm 5MHz)
Application---10 thickness measurement storage and recall function is available, which facilitates the height work or working in wild area
Auto Linear Compensation---This advanced software program enhances the precision by correcting the non-linear accuracy of transducer
Auto Calibration to Assure the Accuracy---Use and keys to make a quick adjustment for the sound velocity /thickness,and a quick recall to the stored data
Sound Velocity Measurement---With a given thickness by a sample hardware to measure the sound velocity, which avoid the further conversion or consultation of the table
Coupling Status Indication---Observing the coupling icon to learn if the coupling is accomplished or not
